Juntas de Expansão de Tecido vs. Juntas de Expansão de Metal: Qual é a melhor?

Escolher entre umjunta de expansão de tecidoe umjunta de expansão metálicaNão se trata simplesmente de qual produto é mais resistente ou qual material suporta a temperatura mais alta. A escolha correta depende de como o sistema se movimenta, da pressão sob a qual opera, do fluido que o atravessa, do diâmetro do duto ou tubo e da quantidade de carga que pode ser transferida para os equipamentos conectados.

De modo geral, as juntas de expansão de tecido são altamente eficazes em grandes sistemas de dutos de baixa pressão que transportam ar quente, gases de escape ou gases de combustão, enquanto os foles metálicos são comumente escolhidos para tubulações pressurizadas e sistemas de processo onde a contenção da pressão e a resistência mecânica são essenciais.

A comparação a seguir explica onde cada projeto apresenta melhor desempenho e quais fatores devem ser avaliados antes de especificar uma junta de dilatação.

Junta de dilatação têxtil versus junta de dilatação metálica: uma visão geral

A diferença mais importante: Sistema de dutos versus sistema de tubulação

Uma das maneiras mais fáceis de iniciar o processo de seleção é determinar se a junta de expansão será instalada em um grande duto industrial ou em um sistema de tubulação pressurizado.

UMjunta de expansão de tecido não metálicoÉ particularmente adequado para grandes dutos de ar e gás. Esses sistemas são frequentemente encontrados em usinas de energia, fábricas de cimento, siderúrgicas, fornos industriais, sistemas de coleta de poeira, equipamentos de combustão e instalações de exaustão.

O fluido do processo é geralmente gasoso e a pressão costuma ser relativamente baixa em comparação com tubulações de processo pressurizadas.

Uma junta de expansão metálica utiliza finas convoluções de metal moldado para criar flexibilidade, mantendo a contenção da pressão. Os foles metálicos são amplamente utilizados em sistemas de vapor, tubulações de processo, petroquímicos, químicos e outros sistemas de engenharia onde a pressão é um requisito fundamental do projeto.

Essa diferença no ambiente de aplicação explica muitas das diferenças de desempenho entre as duas tecnologias.

1. Capacidade de pressão

A pressão é geralmente o primeiro fator que diferencia uma junta de dilatação têxtil de um fole metálico.

Juntas de dilatação de tecido

As juntas têxteis são destinadas principalmente a dutos de baixa pressão. Seu elemento flexível consiste em tecidos revestidos, camadas de reforço, membranas de vedação e isolamento, em vez de um fole metálico para conter a pressão.

Eles são comumente encontrados em:

• Dutos de gases de combustão
• Sistemas de ar de combustão
• Dutos de exaustão industrial
• Sistemas de entrada e saída de ventiladores
• Dutos de forno
• Sistemas de coleta de poeira
• Equipamentos para controle da poluição do ar

Juntas de Expansão Metálicas

Um fole metálico pode ser projetado para suportar uma pressão interna consideravelmente maior. Sua parede metálica ondulada é projetada para proporcionar flexibilidade e contenção de pressão.

Isso torna as juntas de dilatação metálicas adequadas para aplicações como:

• Tubulação de vapor
• Tubulações de processo
• Sistemas de petróleo e gás
• Processamento químico
• Conexões do trocador de calor
• Sistemas de gás pressurizado

Regra de seleção:Se for necessário conter pressões significativas no sistema, foles metálicos devem ser avaliados em primeiro lugar. Juntas de expansão de tecido não devem ser consideradas como substitutas diretas de foles metálicos com classificação de pressão.

2. Capacidade de Movimento

É no movimento que os desenhos dos tecidos se tornam particularmente atraentes.

Uma correia de tecido pode deformar-se numa área relativamente ampla. Isso permite acomodar deslocamentos axiais, laterais e angulares substanciais sem depender de múltiplas convoluções metálicas moldadas.

Para grandes sistemas de dutos onde a expansão térmica ocorre em mais de uma direção, isso pode simplificar consideravelmente a disposição das juntas de dilatação.

Tipos de Movimento Típicos

• Compressão axial
• Extensão axial
• Deslocamento lateral
• Movimento angular
• movimento multidirecional combinado

Os foles metálicos também podem acomodar esses movimentos, mas a configuração dos foles deve ser projetada especificamente para eles.

For example, larger lateral displacement may require a universal metallic expansion joint with multiple bellows and a center pipe rather than a single bellows element.

Therefore, when large lateral or combined movement is required in a low-pressure duct, afabric expansion jointis often the more practical design.

3. Reaction Forces and Spring Rate

This is an important engineering difference that is often overlooked during purchasing.

A metallic bellows behaves like a mechanical spring. When it is compressed, extended or laterally displaced, it generates reaction forces that must be considered in the piping design.

These forces may influence:

• Anchors
• Guides
• Equipment nozzles
• Pipe supports
• Duct supports

Fabric expansion joints generally produce much lower spring forces because the flexible textile element is considerably softer than formed metal bellows.

For large duct systems connected to fans, furnaces or lightweight structural components, reducing these reaction loads can be a major advantage.

4. Vibration Isolation

Fans, blowers, turbines and other rotating equipment can transmit vibration into connected ductwork.

A flexible fabric connector can help isolate some of this vibration because the textile belt does not create the same rigid mechanical path as solid ductwork.

This makes fabric expansion joints especially useful around:

• Industrial fans
• Blowers
• Air handling equipment
• Exhaust systems
• Large combustion-air ducts

Metal expansion joints can also accommodate vibration, but the movement amplitude, frequency and expected cycle life must be considered carefully in the bellows design.

For high-cycle vibration, neither product should be selected solely from a general product specification. Actual vibration data should be supplied to the manufacturer.

5. Large Rectangular Ducts

Large rectangular ductwork strongly favors fabric construction in many industrial systems.

Consider an exhaust duct measuring several meters across. Producing a metallic flexible element for such a large cross-section requires substantial metal fabrication and careful control of corner stresses.

A rectangular fabric joint can use a flexible belt installed around the perimeter of the duct, making very large dimensions more practical.

This is whyrectangular fabric expansion jointsare frequently seen in:

• Power station ducting
• Cement kiln systems
• Steel plant exhaust lines
• Large furnace ducts
• Flue gas treatment equipment

For these applications, size alone can significantly influence the final choice.

6. Temperature: Which One Is Better?

It is incorrect to assume that metal is always better at high temperature or that fabric automatically has a lower usable process temperature.

The two systems manage temperature differently.

Metal Expansion Joint Temperature

Metallic bellows temperature capability is determined primarily by the selected alloy, design pressure, material strength at temperature and expected fatigue life.

Stainless steels and nickel-based alloys can be selected for elevated-temperature service.

Fabric Expansion Joint Temperature

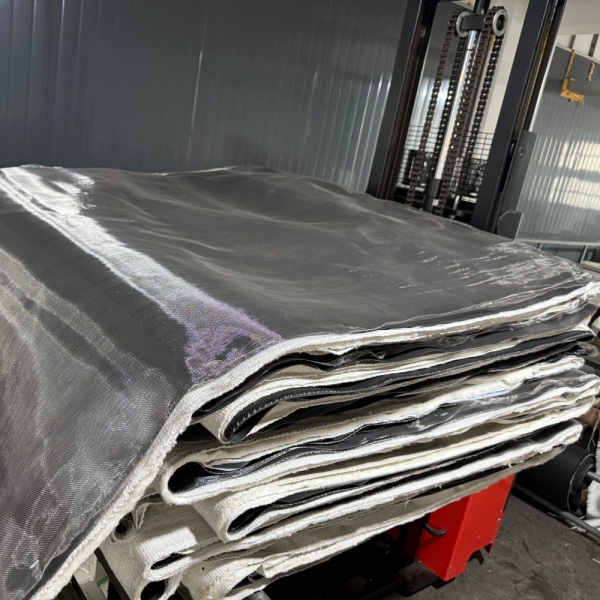

A high-temperature fabric expansion joint may use several thermal layers rather than exposing one flexible membrane directly to the process gas.

A typical construction may include:

• Hot-face protection
• Insulation layers
• Reinforcement fabric
• Gas sealing membrane
• Outer protective cover

The insulation package can reduce the temperature reaching the external sealing materials.

Therefore, ahigh temperature fabric expansion jointshould be selected based on the full temperature gradient through the joint, not simply on the temperature rating of one fabric.

7. Flue Gas and Exhaust Applications

Hot flue gas and exhaust systems are among the most common applications for non-metallic designs.

These installations often combine:

• Large duct dimensions
• Low internal pressure
• High operating temperature
• Thermal cycling
• Lateral movement
• Fan vibration

That combination closely matches the strengths of fabric expansion joints.

Typical installations include:

• Boiler exhaust ducts
• Industrial furnaces
• Gas turbine exhaust systems
• Cement process ducts
• Incinerator systems
• Flue gas treatment equipment

For customized designs, BSTFLEX manufacturesNon Metallic Fabric Expansion Jointsfor industrial ducting, hot-air, flue-gas and exhaust applications.

8. Chemical and Corrosive Environments

Corrosion resistance cannot be judged simply by comparing “fabric” with “metal.”

The actual materials must be compared.

A metallic expansion joint may use corrosion-resistant stainless steel or nickel alloy when aggressive media are present.

A fabric expansion joint may use chemical-resistant barrier layers such as PTFE-coated textiles or other compatible membrane systems.

Selection should consider:

• Gas composition
• Acid concentration
• Alkaline components
• Moisture
• Condensation
• Operating temperature
• Cleaning chemicals

Condensation is particularly important in flue-gas systems because chemical attack may become more severe when corrosive gases condense on cooler joint surfaces.

9. Flow Velocity and Abrasion

Neither fabric nor metallic bellows should necessarily be exposed directly to severe turbulent flow or abrasive particles without protection.

A fabric joint may use:

• Internal flow liner
• Baffle
• Insulation pillow
• Abrasion-resistant hot-face layer

A metallic bellows may also require an internal liner to prevent erosion, turbulent excitation or direct impingement on the convolutions.

This means gas velocity, dust loading and flow direction should always be included in the expansion joint specification.

10. Installation Space

Available space can strongly affect the decision.

A fabric joint can often absorb considerable lateral movement within a relatively short flexible span.

Metallic systems can also accommodate large displacement, but may require more complex arrangements such as universal joints, hinged joints or gimbal configurations depending on movement direction.

However, there are also piping layouts where a compact metallic bellows is the more appropriate design.

Installation space should therefore be considered together with pressure and movement rather than as an isolated factor.

11. Weight and Structural Loading

Fabric flexible elements are generally lighter than comparable large metallic assemblies.

This difference becomes increasingly important as duct dimensions increase.

Lower component weight can reduce loads during:

• Transportation
• Handling
• Installation
• Maintenance
• Replacement

In very large rectangular duct systems, this can be an important practical advantage.

12. Replacement and Maintenance

Fabric expansion joints are often designed with replaceable flexible belts.

If the surrounding steel frames remain serviceable, maintenance may involve replacing the flexible element rather than removing the complete assembly.

This can be useful in large duct installations where removing welded steel frames would create significant shutdown work.

Metal expansion joints generally require replacement or repair of the metallic bellows assembly when the bellows itself becomes damaged.

The actual maintenance cost depends on system design, accessibility, joint size and failure mode.

13. Expected Service Life

There is no meaningful universal statement such as “metal lasts longer than fabric.”

Service life depends on whether the joint was correctly designed for the application.

A fabric joint can fail prematurely because of:

• Excess temperature
• Chemical attack
• Abrasion
• Incorrect installation
• Overextension
• Unexpected movement
• Condensation

A metal bellows can fail because of:

• Fatigue
• Corrosion
• Stress corrosion cracking
• Excess pressure
• Squirm
• Torsion
• Excess movement
• Flow-induced vibration

Correct engineering matters more than simply choosing one material category over another.

Which Expansion Joint Is Better for Different Applications?

When Should You Choose a Fabric Expansion Joint?

Afabric expansion jointshould be seriously considered when most of the following conditions are present:

• The system is a duct rather than a pressure pipeline.
• The medium is air, exhaust gas or flue gas.
• Operating pressure is relatively low.
• The duct cross-section is large.
• Significant lateral movement must be absorbed.
• Several movement directions occur simultaneously.
• Reaction loads on adjoining equipment should be minimized.
• Fan or blower vibration is present.
• A rectangular or irregular geometry is required.

This is the typical application envelope for anon metallic expansion joint.

When Should You Choose a Metal Expansion Joint?

A metallic expansion joint should normally be evaluated first when:

• The system is pressurized piping.
• Steam or process fluid is being transported.
• Pressure containment is critical.
• The applicable piping design requires metallic construction.
• High mechanical strength is required.
• The system is designed according to metallic bellows engineering standards.

Metallic bellows are engineered pressure-containing components and should be designed around system pressure, temperature, movement, material, fatigue life and piping loads.

Non Metallic vs Metallic Expansion Joint: A Better Selection Method

Instead of asking, “Which expansion joint is better?” engineers should ask, “Which expansion joint architecture matches this system?”

Use the following sequence.

Step 1: Identify the System

Is it a large duct or pressurized pipe?

Step 2: Define Pressure

Specify normal pressure, design pressure and whether the system operates under positive or negative pressure.

Step 3: Define Temperature

Provide both continuous operating temperature and maximum excursion temperature.

Step 4: Separate Every Movement

List axial compression, axial extension, lateral displacement and angular movement individually.

Step 5: Identify the Medium

Specify hot air, exhaust gas, flue gas, steam, liquid or process chemical.

Step 6: Check Flow Conditions

Include gas velocity, dust loading, abrasive particles and turbulence.

Step 7: Evaluate Equipment Loads

Determine how much reaction force can safely be transferred to fans, duct supports, equipment nozzles and anchors.

Step 8: Review Installation Geometry

Confirm shape, dimensions, flange arrangement and available face-to-face installation length.

A Practical Example: Large Flue Gas Duct

Consider a large rectangular flue-gas duct installed downstream of industrial combustion equipment.

The system has:

• Large rectangular dimensions
• Hot gas
• Low operating pressure
• Axial thermal growth
• Lateral movement
• Fan vibration

In this situation, a fabric expansion joint is often an efficient choice because it can combine large cross-section capability, multidirectional flexibility and low reaction forces.

Now consider a high-pressure steam line operating at elevated temperature.

Although thermal movement still exists, the system requires reliable pressure containment. A metallic bellows engineered for the piping pressure, temperature and movement is generally the appropriate technology.

These examples demonstrate why the operating system must determine the expansion joint type.

What Information Should Be Sent to the Manufacturer?

For either metallic or fabric designs, the quality of the engineering recommendation depends heavily on the information supplied.

For a custom fabric joint, BSTFLEX recommends providing:

• Duct width and height or diameter
• Joint face-to-face length
• Operating temperature
• Maximum temperature
• Positive or negative pressure
• Process medium
• Axial compression
• Axial extension
• Lateral movement
• Angular movement
• Gas velocity
• Dust or particulate content
• Chemical composition
• Existing flange details
• Drawings or photographs
• Required quantity

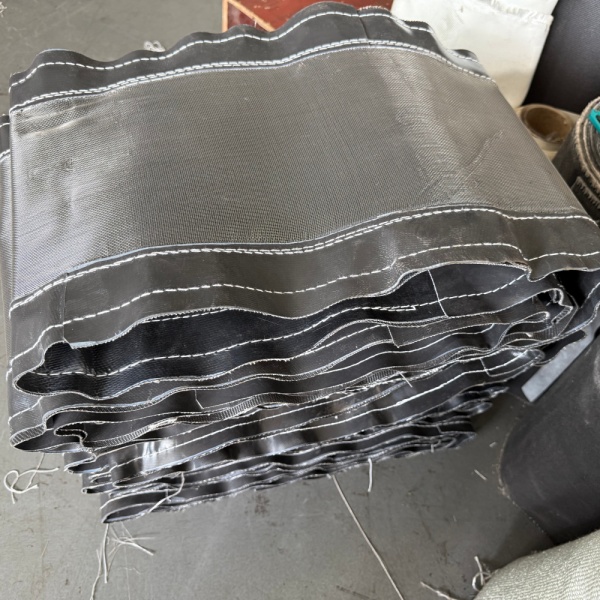

Fabric Expansion Joint Solutions from BSTFLEX

BSTFLEX manufactures custom non-metallic expansion joints for industrial hot-air, exhaust and flue-gas ducting systems.

Depending on operating conditions, flexible constructions can incorporate technical fabrics, coated fiberglass, PTFE-based sealing layers, high-temperature insulation and protective components.

Round, rectangular and application-specific configurations can be manufactured according to customer drawings and operating data.

See theJunta de Expansão de Tecido Não Metálico BSTFLEXpara opções de fabricação personalizada.
